HS-2000
5-Channel Full HD Mobile Studio
The Datavideo HS-2000 is a compact and light weight, broadcast quality HD-SDI mobile video studio, designed around the Datavideo SE-2000 five channel 10-bit HD switcher.
Switcher/Mixer
The HS-2000 is a five channel 10-bit 1080i or 720p HD-SDI, HD-Component and DVI-D video & audio switcher, providing a choice of input configurations of either 4 x HD-SDI & 1 x DVI-D or 3 x HD-SDI & 2 x DVI-D. Outputs include 2 x HD-SDI and HD Component. Thanks to a built in frame synchronizer and TBC for each channel, none of the external video sources needs external genlock for glitch & flicker free switching between all five inputs. The integrated audio mixer with, balanced XLR connectors, allows up to four channels microphone or line level audio inputs.
Monitor
The HS-2000 has an integrated 17-inch multi image LCD display, which provides a complete overview of all 5 input channels, as well as Preview (Next Source) and Program (Live). The screen also features tally information, where Program is highlighted in red, and Next Source marked in yellow. In addition to the built in multi-view display, the HS-2000 also provides connections for an external multi display monitor via HDMI.
Talkback & Tally Indicator
In any production, good communication between the director, cameraman, lighting, sound mixing etc. is essential to produce a polished end result. The integrated five channels intercom system provides talkback for up to five users, via included five belt packs, each complete with bag, microphone headset, on camera dual colour tally indicator and 20 meter cable. The dual colour tally indication box as two functions, provide the camera man with valuable information on been Live or selected as Next Source, while at the same time also provide dual colour tally indication to assist the person (the talent) in front of the camera (what camera to look at for Live and where to look Next). The director can select to talk to an individual channel or to all channels simultaneously. High signal to ratio (good quality with very little noise) and full duplex design makes the communication crisp and clear.
Keying & Titling
HS-2000 also features a built in Lumakey keyer for text insertion via traditional presentation software or dedicated title software. Other advanced keying features includes digital clock display and logo insertion via the built in 14 image logo store with support for *JPEG or *.BMP image files.
Power Distribution Center
To avoid the mess and inconvenience of individual power supplies, Datavideo HS-2000 comes with an integrated power distribution centre, providing a simple, safe and secure solution for connecting all the integrated equipment from a single socket.
The Datavideo HS-2000 is designed for easy setup, breakdown and storage at any location, ready to be "live-in-seconds". Whether you're working in worship, education, conducting a live outside broadcast or shooting inside a production studio, the Datavideo HS-2000 enables seamless switching of full high definition video and audio, blending high quality digital content on the fly without requiring external genlock, thanks to built in TBC.
Features:
- Full HD 1920x1080i and 1280x720p
- Inputs:
4 x HD-SDI & 1 x DVI-D or 3 x HD-SDI & 2 x DVI-D
- Outputs:
2 x HD-SDI & 1 x HD-YUV full HD video Output
- 17-inch multi-image video monitor displaying each source, pre-view and program
- Built in digital clock and 5 logo store
- Lumakey function for text overlay
- 4 XLR microphone or line audio input
- Picture in Picture function
- Built in 5 channels dual channel Intercom system with five cameraman belt packs with dual colour tally light indicator
- Dual colour tally light
- Seamlessly switch between all sources, thanks to the built in TBC & frame synchronizer that synchronizes all inputs without the need for external genlock of the cameras
- Integrated power distribution centre providing a simple and secure solution for connecting all the integrated equipment from a single socket
HS-500
Hand Carried Studio
The Datavideo HS-500 is a compact, portable one box solution, built around the SE-500.
Designed with no compromise in performance for users where weight matters.
Perfect for applications within education, places of worship, internet streaming, event & live staging, conferences and many more.
HS-500 comes supplied complete in a stylish and light aluminium carrying case, for easy and secure transport and storage.
The input connections include Composite Video and Y/C (S-Video), output also includes Component (Y:U:V), which could be connected to a DVD recorder or projector.
Features:
- Integrated Solution
HS-500 is fully integrated with cable loom and power supply. Connection to video sources (such as camcorders) is made easy with the quick release pivoting back panel
- Ergonomic Design
The aluminium case has been especially designed to make operation extremely comfortable, and set up / break down very quick
- Strong Locking Pivot Points
Easy adjustment of the viewing angle of the high quality TLM-702 TFT LCD monitor
- Aluminium Carry Case
HS-500 is supplied in a stylish light aluminium carrying case, convenient for easy and secure transport and storage

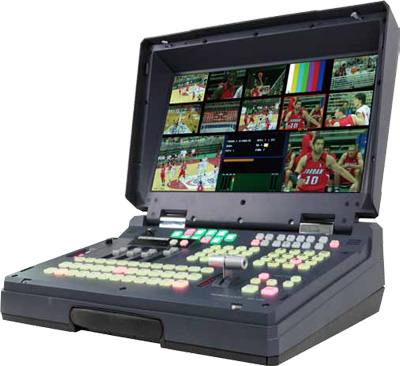

HS-600
Hand Carried Studio Coming Q1 2012
Datavideo HS-600 is a light weight Standard Definition video studio, which combines an eight input switcher, with a talkback system, multi-view 17-inch high quality LCD screen.
The system is powered from a power distribution system, which provides a secure power supply to each device from one connection.
The HS-600 is designed to excel and meet your demands whether you're working in worship, education, conducting a live outside broadcast or shooting inside a production studio. It enables you to switch seamlessly between video and audio sources and blend high-quality digital content on the fly, even without external genlock, thanks to the built in time base corrector.
The Datavideo HS-600 is a one box solution designed to be "live in seconds".
Features:
- Complete integrated solution with six Composite Video, and two DVI-D inputs.
- Optional DV Board also two DV25 (IEEE-1394) inputs
- Three Composite Video and multiple Auxiliary output.
- Optional DV Board also one DV25 (IEEE-1394)
- The flexible outputs makes it easy to connect the HS-600 to external devices such as large screens, recorders, streaming and more - all at the same time
- Dual Picture-In-Picture function
- 17-inch high quality TFT LED Multi-View screen for each input, as well as Program & Preview Features include audio peak-meter; adjustments for brightness, contrast, colour saturation and backlight - ideal for outdoor use
- Built in RS-232 & GPI control interface allows you to control external devices
- Hot key functions, allow quick access to vital functions including fade to solid colour, instant key, and more

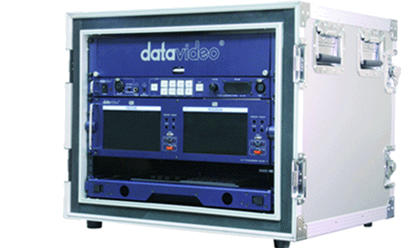

MS-500
Mobile Studio based around SE-500
The Datavideo MS-500 is a one box solution designed around the SE-500 4-channel vision switcher. The MS-500 system is both flexible and affordable, with specifications that can meet any budget or demand and is perfect for applications within education, places of worship, internet streaming, event & live staging conferences and many more. The whole system is fully integrated with the ITC-100 for talkback / intercom, TLM-702 for SE-500 unique quad preview, next source and main output monitoring.
Easy setup & break down on location. One box solution for “live in seconds” at any Conference, Studio, Outside Broadcast or Internet Streaming. Output options include: Component (Y.U.V) which could be connected to a DVD recorder or projector.
Features:
- One Box Solution
- Live In Minutes
- Extensive Rear Panel for easy connection
MS-900
Mobile Video Studio
Datavideo MS-900 is a fully integrated mobile video studio designed around the Datavideo SE-900 modular 8-channel SD switcher. The MS-900 feature set can be expanded with additional input cards and accessories when your requirements evolve.
Switcher/Mixer
The MS-900 accepts a mix of up to 8 SD inputs of your choice including DV, SDI, DVI, YUV and Composite Video. Standard outputs include DV, SDI, YUV, S-Video (Y/C) and Composite Video. Thanks to a built in frame synchronizer and TBC for each channel, none of the external video sources needs external genlock for flicker free switching between all 8 inputs - in any format, this allows even traditional entry level video cameras to be used.
Monitor
The built in 17-inch multi image display easily pulls out on location, and provides a complete overview of all 8 input channels, as well as Preview (Next Source) and Program (Live). The screen also features tally information, where Program is highlighted in red, and Next Source marked in yellow. In addition to the multi-view display, each input card also provides a real-time live Composite Video output, irrespective of the input type.
Recording
Recording is easily done via the built in DN-500 hard drive recorder, which can record into a file format that can be edited in most popular computer based editing systems. In addition the MS-900 is also supplied with a file conversion software, allowing easy and fast conversion into additional file formats. With DN-500 you can take advantage of tapeless recording, where recording times are far longer than traditional tape, there are no drop-outs and using Datavideo's Direct to Timeline technology, you will speed up the process from recording to editing, thanks to file transfer, rather than traditional capturing. Once you have completed your recording simply eject the hard drive carrier from the DN-500, and connect it easily to your NLE system via a standard USB connector. Your recording is now immediately available as files ready for editing - it's as easy as that!
Talkback & Tally Indicator
In the production studio, good communication between the director, cameraman, lighting, sound mixing etc. is essential to produce a polished end result. The integrated ITC-100 Intercom System provides talkback for up to 8 users, with additional tally indication for each camera. The TD-1 camera tally light, also provide dual colour tally light to assist the person (the talent) in front of the camera (what camera is "Live" and what camera is "Next Source"). The director can select to talk to an individual channel or to all channels simultaneously. High signal to ratio (good quality with very little noise) and full duplex design makes the communication crisp and clear. The MS-900 system is supplied with 8 x ITC-100SL camera belt packs, each with microphone headset, on camera dual colour tally indicator and 20 meter cable.
Downstream Keying/Titling
MS-900 features also include a downstream keyer (DSK) for integration with character generator software, such as Datavideo CG-100 or CG-350 . Overlay (Keying) can be performed internally or externally. A separate Logo Display can be used independently of the DSK utilising two built in image stores with support for *.bmp image files.
Chromakeying
Additional optional Chroma Key board can be fitted to add up to 4 channels of high quality Chroma Key. Each channel can be set independently, to produce a perfect key from any angle or camera type (perfect when you work with different types of cameras), and you can seamlessly switch from one channel to another, even without using any form of genlock. This is ideal for virtual studio or newsroom type applications.
Audio Delay & Audio Embedding
Use of digital formats like DV and SDI, often produces a delay in the video stream. To accommodate for any delay MS-900 includes an audio delay function, making it possible to synchronize video and audio together for a perfect resolute. In addition the MS-900 also features a DV and SDI audio embedder for output when recording to an external source (like DVD recorders) or streaming to the internet.
